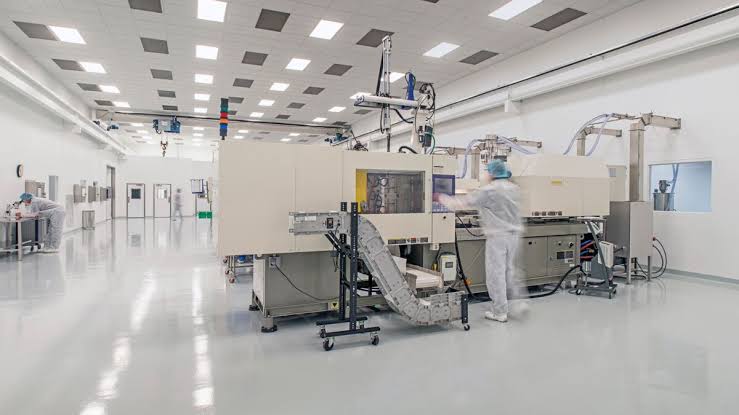

Mold solutions support high-volume production by increasing parts per cycle, shortening cooling time, controlling cavity-to-cavity variation, and keeping tooling available for long production runs. An 8-cavity mold running a 24-second cycle can theoretically produce 1,200 parts per hour; cutting the cycle to 20 seconds raises output to 1,440 parts, a 20% increase without adding another molding machine. Multi-cavity layouts, balanced runners, controlled cooling, durable inserts, hot runners, sensors, and planned maintenance all affect that result. For programs producing 500,000 to several million parts, a few seconds of cycle time or 1% scrap can materially change machine hours, resin use, maintenance demand, and unit cost.
High-volume mold planning starts with the required annual quantity rather than cavity geometry alone. A program needing 4.8 million parts per year cannot be evaluated in the same way as one needing 80,000 pieces. With 6,000 productive machine hours available annually, a 4-cavity mold running at 25 seconds has a theoretical capacity of about 3.46 million parts before downtime, scrap, mold servicing, color changes, or process qualification are deducted.
Raising the cavity count to 8 doubles theoretical pieces per shot, but the molding machine must then provide enough shot capacity, plasticizing rate, clamp force, platen area, and tie-bar clearance. Runner balance also becomes more sensitive because a 5% difference in filling behavior between cavities can create measurable differences in part weight, packing, shrinkage, or flash.
More cavities improve output only when melt delivery, cooling, venting, and ejection remain reasonably uniform across the complete mold.
That requirement moves attention from cavity count to filling behavior. Naturally balanced runner layouts place cavities at comparable flow distances, while hot-runner manifolds can feed high-cavity molds without producing a solid runner every cycle. Valve gates can also control individual gate opening, which is useful on larger parts or layouts where several gates must fill a cavity in a planned sequence.
Runner choice becomes more important as resin consumption rises. Assume eight molded parts weigh 30 g each and the cold runner weighs another 60 g. Each shot consumes 300 g, of which 20% is runner material. At 1 million cycles, runner mass reaches 60,000 kg before any allowable regrind is considered. A suitable hot-runner arrangement can remove much of that molded-runner volume, although heaters, thermocouples, nozzles, seals, and controllers add maintenance requirements.
Once material delivery is stable, cooling usually provides one of the largest opportunities to shorten the cycle. Straight drilled water lines remain common because they are relatively simple to manufacture and clean, but deep cores, irregular ribs, thick bosses, and curved surfaces may place important regions too far from a conventional channel.
A 2022 Procedia CIRP study using AISI 420 stainless-steel inserts reported cooling-time reductions of up to 41% for tested conformal-cooling concepts compared with conventional arrangements. Another published study reported a simulated molding cycle reduction from 17 seconds to 13 seconds, or about 24%, when conformal channels were used. Results vary with geometry, coolant flow, mold material, resin, and channel design rather than applying to every mold.
The production effect can be estimated before investing in more equipment. A 16-cavity mold running at 30 seconds completes 120 cycles per hour, equal to 1,920 theoretical parts. At 27 seconds, it completes about 133.3 cycles per hour, raising theoretical output to roughly 2,133 parts. A 10% shorter cycle therefore adds about 213 parts per hour from the same press.
Thermal uniformity matters as much as speed because the hottest area often controls when the mold can open. A core that remains several degrees hotter than surrounding steel can require extra cooling even when 90% of the part is already stiff enough for ejection. Uneven temperatures can also increase differential shrinkage, warpage, sink, and dimensional spread.
For that reason, production mold design normally evaluates several areas together:
-
Channel distance from the cavity and core surface
-
Water-flow path, pressure loss, and connection size
-
Baffles, bubblers, inserts, or conformal channels in difficult regions
-
Mold-material thermal conductivity
-
Scale and deposit removal during maintenance
-
Separate circuits for areas requiring different temperature control
After cooling is addressed, dimensional repeatability becomes the next production issue. ISO 20457:2026, published in August 2026, covers geometrical and dimensional tolerances and acceptance conditions for plastic molded parts. The standard recognizes that molded plastics behave differently from metals because shrinkage, material behavior, warpage, geometry, and processing conditions affect achievable dimensions.
That distinction matters in molds containing 8, 16, or 32 cavities. A drawing may specify one nominal dimension, but every cavity is a separate physical surface affected by steel machining, polishing, temperature, local pressure, venting, and material flow. Qualification should therefore examine cavity-specific data rather than mixing all measurements into one average.
For example, measuring 5 pieces from each cavity of a 16-cavity mold provides an 80-part sample. If one cavity repeatedly runs near the upper tolerance while the remaining 15 sit near nominal, the pooled average can look acceptable even though the mold contains a localized condition that may worsen as tooling wears.
| Production variable | Example difference | Possible production effect |
|---|---|---|
| Cycle time | 25 s vs. 22.5 s | 11.1% more cycles/hour |
| Scrap rate | 3% vs. 1% | 20,000 more accepted parts per 1 million molded |
| Cavities | 8 vs. 16 | Up to 2× pieces per cycle |
| Downtime | 6% vs. 3% | About 180 extra hours across 6,000 scheduled hours |
| Runner share | 20% of shot | 200 kg per 1,000 kg processed |
Maintaining those numbers over long runs depends heavily on tool construction. Abrasive glass-filled polymers can wear gates, runners, slides, shutoffs, and cavity surfaces faster than many unfilled materials. Corrosive gases or additives can create another requirement for steel selection, coatings, or corrosion-resistant inserts.
A mold intended for 2 million cycles may therefore justify hardened cavity components and replaceable inserts in areas expected to wear. Replacing a small gate insert is usually more practical than welding and remachining a large cavity block after dimensional wear has already affected production.
Service access should be considered at the same time. Ejector pins, sleeves, slides, lifters, seals, gate components, vents, and water circuits all need inspection over the operating life. If servicing one component requires extensive mold disassembly, scheduled maintenance consumes more press time and technician hours.
Consider an 8-cavity mold operating at a 20-second cycle. It can theoretically produce 1,440 parts per hour. A four-hour unplanned stop therefore removes as much as 5,760 pieces of scheduled capacity. At 16 cavities, the same interruption represents 11,520 theoretical pieces.
Maintenance planning is easier when wear points are documented and spare components are prepared from approved drawings. Cycle counters can provide a basic service reference, while mold-pressure or temperature data can reveal process changes before reject rates become large.
Sensors become more useful when the acceptable processing range is narrow. Cavity-pressure measurements can show whether filling and packing conditions remain similar from shot to shot, while mold-temperature sensors can identify changes in heat removal. Sensor data should support the molding process rather than replace dimensional inspection.
A change of only 1% in rejection rate becomes substantial at high quantity. At 5 million molded parts, reducing scrap from 2% to 1% produces 50,000 additional accepted parts from the same gross production quantity. Material, machine time, inspection, handling, and disposal all move with that percentage.
Automation also has to match the mold cycle. A mold capable of running every 15 seconds gains little if a robot, insert-loading station, or downstream handling step requires 18 seconds. Ejection stroke, gripper clearance, part orientation, gate vestige, static behavior, and whether parts remain on the cavity or core side should be considered before the mold is completed.
For molded components requiring repeat production rather than short sampling runs, Qlution Mold can be considered during the tooling stage when cavity arrangement, mold construction, cooling, ejection, and production requirements need to be reviewed together.
The financial comparison should still be made at part level rather than using tool price alone. Suppose Mold A costs less but runs at 28 seconds, while Mold B runs at 24 seconds. Over 1 million cycles, Mold A requires about 7,778 machine hours; Mold B requires about 6,667 hours. The difference is roughly 1,111 machine hours, before scrap or downtime is included.
The same comparison applies to cavity number. Producing 8 million parts with an 8-cavity mold requires 1 million cycles. A 16-cavity mold requires 500,000 cycles for the same quantity, provided both tools achieve the required quality and uptime. Fewer cycles can reduce machine hours, but the larger mold may require a larger press, more expensive hot-runner equipment, higher tooling investment, and more complicated validation.
For high-volume programs, mold selection therefore works best when cycle time, cavity count, expected service life, scrap allowance, resin consumption, press rate, maintenance intervals, and available annual machine hours are calculated together. A difference that looks small on one cycle can become large after 500,000, 1 million, or 5 million repetitions.
